Stainless Steel Motorized Roller Conveyor,90 Degree Transfer Table

Name: Stainless Steel Motorized Roller Conveyor90 Degree Transfer Table
Brand: YiFan
Price: 1 USD

Wholesale Stainless Steel Motorized Roller Conveyor,90 Degree Transfer Table from china suppliers

Brand Name : YiFan

Model Number : DLG

Certification : CE

Place of Origin : Ningbo,China

MOQ : 1 unit

Price : optional

Payment Terms : T/T,L/C

Supply Ability : 100 units/month

Delivery Time : 2 weeks

Packaging Details : plywood pallet/cardboard/bubble film

Delivery Port : Shanghai,Ningbo

Load Capacity : 80-200kg/m

Material : Stainless Steel

Material Feature : Heat Resistant

Structure : Roller Conveyor

Type : Chain Conveyor

Condition : New

Conveyor Width : 400~1000mm

Conveyor Height : 600-1000mm

Conveyor Length : 2m~10m

Roller Materials : steel,plastic,rubber

Roller Width : 400~1000mm

Roller Diameter : optional

Power : 0.75kw-2.2kw

Voltage : 380V±10%,3-PH

Contact Now

Description

Stainless Steel Motorized Roller Conveyor,90 Degree Transfer Table for convey cartons,boxes,pallets in warehouses,factories,workshops can be driven by either single chain or double chain.The conveyor can be customized with different length,width,height,load capacity,speed,material,etc.

Features

Large,continous,flexible and efficient transmission
Perfect to conveying flat-bottomed items like cartons,cases,boxes and pallets
Small soft or irregular items are supposed to put on trays or other flat containers
Popular applied in confluence and diversion sections
Convenient connection to other lines
Easy maintenace

Optional Frame Material:

Carbon Steel
Stainless Steel
Aluminum,etc.

Optional Roller Material:

galvanized steel
chromed steel
rubber coated steel
stainless steel
Aluminum
PVC
ABS

Tecnical Parameters

Conveyor Length	1m-15m
Roller Width	300~1000mm
Load Capacity	Max.1000kg/m
Speed	10-20m/min
Motor Power	0.75,1.1,1.5,2.2kw
Roller Material	steel,plastic,stainless steel
Frame Material	Carbon Steel,Stainless Steel,Aluminum
Bend Degree	90° & 180°
Driven	chain driven,belt driven

Stainless Steel Motorized Roller Conveyor,90 Degree Transfer Table

Contact Us

Ningbo YiFan Conveyor Equipment Co.,Ltd.

Email: sales@yfconveyor.com

Web: http://www.yfconveyor.com

Tel:+86 574 8630 1900

Fax:+86 574 8630 1900

Mob:+86 139 5824 8487

FAQ

Can this conveyor be operation in two way FORWARD & REVERSE?
YES
Is the speed controllable?
YES
How many KGS can this conveyor carry?
50KGS per square meter
What products can this conveyor be used to load?
Cartons,boxes,bags,parcels,packages,etc.
Can we add other flexible conveyor to it at the floor level?
YES
Can we use customized belt and motor?
Yes
Can the height be customized?
YES
Can you make the voltage as per our requirements?
YES
How do you dispatch this conveyor?
We will disapart it for dispatch
How long is the delivery time?
25-30 days
How long is the warranty?
1 year
Do you supply OEM & ODM service?
YES
Do you have user’s guide and maintenance instruction?
YES
What are the necessary spare parts we should keep?
Belts,motors,inverter,buttons

You may also interested in!

Stainless Steel Motorized Roller Conveyor,90 Degree Transfer Table

Truck Loading Conveyor

http://www.yfconveyor.com/Products/Loading-&-Unloading-System/Automatic-trailer-van-truck-container-loading-and-unloading-conveyor.html

Stainless Steel Motorized Roller Conveyor,90 Degree Transfer Table

Small Truck Loader

http://www.yfconveyor.com/Products/Loading-&-Unloading-System/Hot-Sale-Portable-Truck-Loading-Conveyor-for-Courier-Companies.html

Stainless Steel Motorized Roller Conveyor,90 Degree Transfer Table

Telescopic Belt Conveyor for loading unloading containers

http://www.yfconveyor.com/Products/Loading-&-Unloading-System/Telescopic-Belt-Conveyor-for-container-loading-unloading.html

Stainless Steel Motorized Roller Conveyor,90 Degree Transfer Table

Flexible Powered Roller Conveyor

http://www.yfconveyor.com/Products/Flexible-Conveyor/Flexible-Zinc-plated-Powered-Roller-Conveyor.html

Stainless Steel Motorized Roller Conveyor,90 Degree Transfer Table

Flexible Gravity Roller Conveyor

http://www.yfconveyor.com/Products/Flexible-Conveyor/Flexible-Gravity-Zinc-Plated-Steel-Roller-Conveyor.html

Stainless Steel Motorized Roller Conveyor,90 Degree Transfer Table

Flexible Gravity Skate Wheel Conveyor

http://www.yfconveyor.com/Products/Flexible-Conveyor/Flexible-Portable-Gravity-Steel-Skate-Wheel-Conveyor.html

Stainless Steel Motorized Roller Conveyor,90 Degree Transfer Table

Aluminum PVC Belt Conveyor

http://www.yfconveyor.com/Products/Belt-Conveyor/Aluminum-PVC-Conveyor-Belt-Assembly-Line.html

Stainless Steel Motorized Roller Conveyor,90 Degree Transfer Table

Heavy Duty Belt Conveyor for courier companies

http://www.yfconveyor.com/Products/Belt-Conveyor/Hot-Sale-Heavy-Duty-Belt-Conveyor-Used-in-Courier-Industry.html

Stainless Steel Motorized Roller Conveyor,90 Degree Transfer Table

Inclined High Grip Belt Conveyor

http://www.yfconveyor.com/Products/Belt-Conveyor/Inclined-Good-Grip-Belt-Conveyor.html

Stainless Steel Motorized Roller Conveyor,90 Degree Transfer Table

Angled Belt Conveyor with Flights

http://www.yfconveyor.com/Products/Belt-Conveyor/Inclined-Angled-PVC-Belt-Conveyor-with-Flights.html

Stainless Steel Motorized Roller Conveyor,90 Degree Transfer Table

Motorized Roller Conveyor

http://www.yfconveyor.com/Products/Roller-Conveyor/Motorized-Chain-Driven-Roller-Conveyor-Systems.html

Stainless Steel Motorized Roller Conveyor,90 Degree Transfer Table

Gravity Roller Conveyor on wheels

http://www.yfconveyor.com/Products/Roller-Conveyor/Portable-Gravity-Roller-Conveyor-Assembly-Line.html

Stainless Steel Motorized Roller Conveyor,90 Degree Transfer Table

90 Degree Bend Roller Conveyor

http://www.yfconveyor.com/Products/Roller-Conveyor/90-Degree-&-180-Degree-Curve-Gravity-Roller-Conveyor.html

Stainless Steel Motorized Roller Conveyor,90 Degree Transfer Table

90 Degree Bend Belt Conveyor

http://www.yfconveyor.com/Products/Belt-Conveyor/90-Degree-&-180-Degree-Curved-Belt-Conveyor.html

Stainless Steel Motorized Roller Conveyor,90 Degree Transfer Table

Flex Move Plastic Chain Conveyor

http://www.yfconveyor.com/Products/Slat-Chain-Conveyor/FlexMove-Plastic-Plain-Chain-Conveyor.html

Stainless Steel Motorized Roller Conveyor,90 Degree Transfer Table

Vertical Lift Conveyor

http://www.yfconveyor.com/Products/Other-Equipment/Z-Type-Vertical-Lift-Conveyor-used-to-lift-tea-bags-from-ground-floor-to-1st-floor.html

Stainless Steel Motorized Roller Conveyor,90 Degree Transfer Table

Z Type Modular Plastic Belt Conveyor

http://www.yfconveyor.com/Products/Mesh-Belt-Conveyor/Z-Type-Modular-Plastic-Belt-Conveyor.html

Stainless Steel Motorized Roller Conveyor,90 Degree Transfer Table

Modular Plastic Mesh Belt Conveyor

http://www.yfconveyor.com/Products/Mesh-Belt-Conveyor/Stalinless-Steel-Modular-Plastic-Mesh-Belt-Conveyor.html

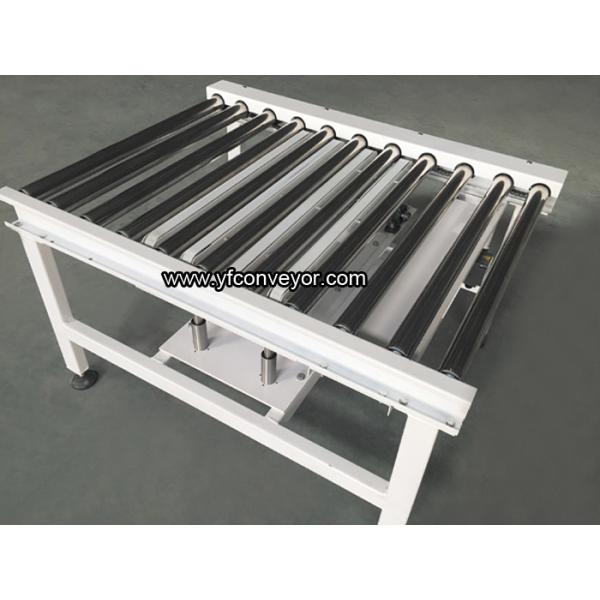

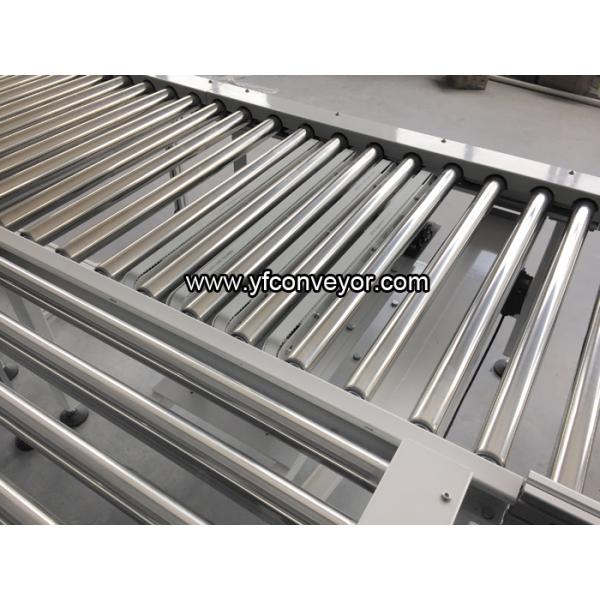

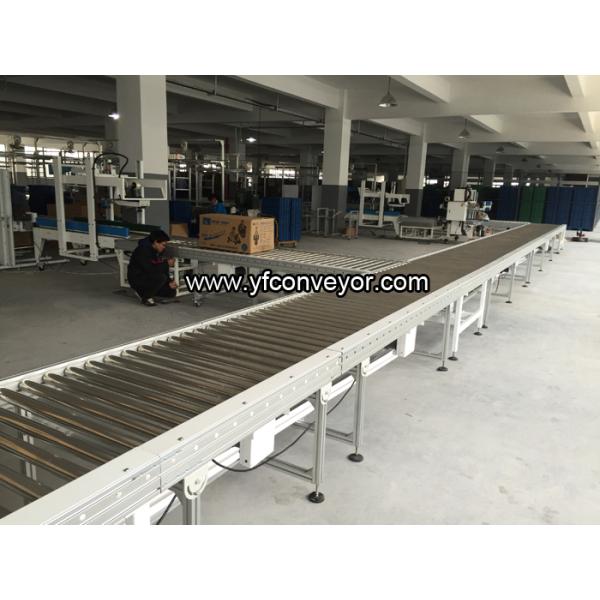

Stainless Steel Motorized Roller Conveyor,90 Degree Transfer Table Images
